02-序列建模实战

学习时间: 约6-8小时 难度级别: ⭐⭐⭐⭐ 中高级 前置知识: 循环神经网络基础、LSTM/GRU、PyTorch 学习目标: 掌握基于RNN的文本分类、情感分析、时间序列预测、Seq2Seq模型


目录


1. 文本分类实战

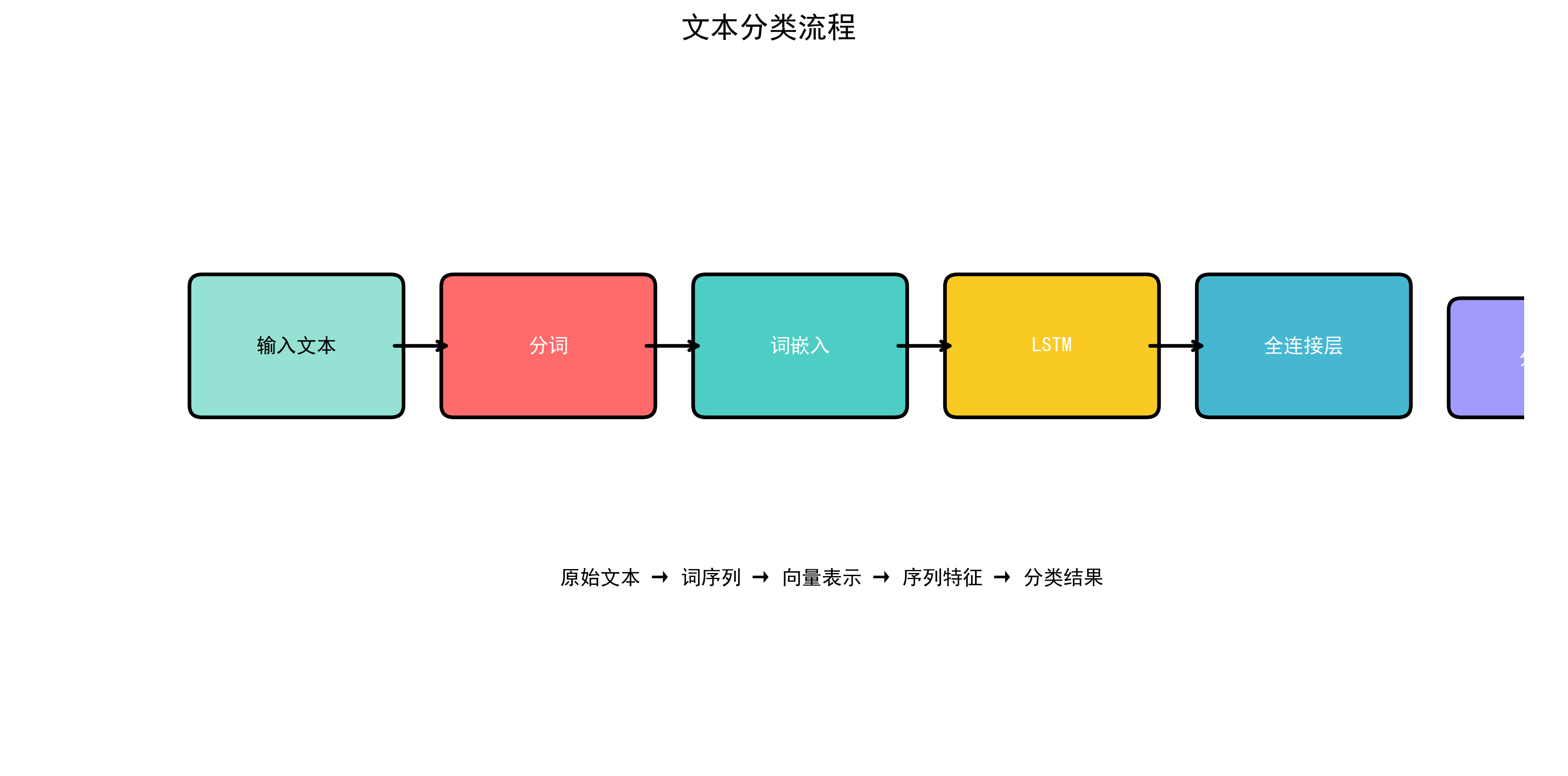

文本分类流程图

1.1 数据预处理流程

Python
import torch
import torch.nn as nn
from torch.utils.data import Dataset, DataLoader
from collections import Counter
import re

class Vocabulary:
    """词汇表构建"""
    def __init__(self, min_freq=2):  # __init__构造方法,创建对象时自动调用
        self.word2idx = {'<pad>': 0, '<unk>': 1, '<bos>': 2, '<eos>': 3}
        self.idx2word = {v: k for k, v in self.word2idx.items()}
        self.min_freq = min_freq

    def build(self, texts):
        counter = Counter()  # Counter统计元素出现次数
        for text in texts:
            tokens = self.tokenize(text)
            counter.update(tokens)

        for word, freq in counter.most_common():
            if freq >= self.min_freq:
                idx = len(self.word2idx)
                self.word2idx[word] = idx
                self.idx2word[idx] = word

    def tokenize(self, text):
        text = text.lower().strip()  # 链式调用,连续执行多个方法
        text = re.sub(r'[^\w\s]', '', text)
        return text.split()

    def encode(self, text, max_len=None):
        tokens = self.tokenize(text)
        indices = [self.word2idx.get(t, 1) for t in tokens]  # 列表推导式,简洁创建列表
        if max_len:
            indices = indices[:max_len]
            indices += [0] * (max_len - len(indices))
        return indices

    def __len__(self):  # __len__定义len()的行为
        return len(self.word2idx)

class TextDataset(Dataset):
    def __init__(self, texts, labels, vocab, max_len=200):
        self.texts = texts
        self.labels = labels
        self.vocab = vocab
        self.max_len = max_len

    def __len__(self):
        return len(self.texts)

    def __getitem__(self, idx):  # __getitem__定义索引访问行为
        encoded = self.vocab.encode(self.texts[idx], self.max_len)
        return torch.tensor(encoded), torch.tensor(self.labels[idx])

1.2 LSTM文本分类模型

Python
class LSTMClassifier(nn.Module):  # 继承nn.Module定义神经网络层
    def __init__(self, vocab_size, embed_dim=128, hidden_dim=256,
                 num_classes=2, num_layers=2, dropout=0.5):
        super().__init__()  # super()调用父类方法
        self.embedding = nn.Embedding(vocab_size, embed_dim, padding_idx=0)
        self.lstm = nn.LSTM(embed_dim, hidden_dim, num_layers,
                           batch_first=True, bidirectional=True, dropout=dropout)
        self.attention = nn.Linear(hidden_dim * 2, 1)
        self.classifier = nn.Sequential(
            nn.Dropout(dropout),
            nn.Linear(hidden_dim * 2, hidden_dim),
            nn.ReLU(),
            nn.Dropout(dropout),
            nn.Linear(hidden_dim, num_classes)
        )

    def attention_pool(self, lstm_output, mask=None):
        """自注意力池化"""
        scores = self.attention(lstm_output).squeeze(-1)  # (batch, seq_len)  # squeeze去除大小为1的维度
        if mask is not None:
            scores = scores.masked_fill(mask == 0, -1e9)
        weights = torch.softmax(scores, dim=1).unsqueeze(2)  # (batch, seq_len, 1)  # unsqueeze增加一个维度
        weighted = (lstm_output * weights).sum(dim=1)  # (batch, hidden*2)
        return weighted

    def forward(self, x):
        mask = (x != 0).float()
        embedded = self.embedding(x)
        output, _ = self.lstm(embedded)
        pooled = self.attention_pool(output, mask)
        return self.classifier(pooled)

2. 情感分析

Python
class SentimentAnalyzer(nn.Module):
    """情感分析模型(支持细粒度情感:1-5星)"""
    def __init__(self, vocab_size, embed_dim=300, hidden_dim=256, num_classes=5):
        super().__init__()
        self.embedding = nn.Embedding(vocab_size, embed_dim, padding_idx=0)
        self.lstm = nn.LSTM(embed_dim, hidden_dim, num_layers=2,
                           batch_first=True, bidirectional=True, dropout=0.3)
        self.fc = nn.Sequential(
            nn.Linear(hidden_dim * 2, hidden_dim),
            nn.ReLU(),
            nn.Dropout(0.3),
            nn.Linear(hidden_dim, num_classes)
        )

    def forward(self, x):
        embedded = self.embedding(x)
        output, (h_n, _) = self.lstm(embedded)
        hidden = torch.cat([h_n[-2], h_n[-1]], dim=1)  # [-1]负索引取最后一个元素
        return self.fc(hidden)

def train_sentiment(model, train_loader, val_loader, epochs=10, device='cuda'):
    optimizer = torch.optim.AdamW(model.parameters(), lr=1e-3)
    criterion = nn.CrossEntropyLoss()
    scheduler = torch.optim.lr_scheduler.ReduceLROnPlateau(optimizer, patience=2)

    for epoch in range(epochs):
        model.train()  # train()开启训练模式
        total_loss, correct, total = 0, 0, 0
        for texts, labels in train_loader:
            texts, labels = texts.to(device), labels.to(device)  # .to(device)将数据移至GPU/CPU
            outputs = model(texts)
            loss = criterion(outputs, labels)
            optimizer.zero_grad()  # 清零梯度,防止梯度累积
            loss.backward()  # 反向传播计算梯度
            torch.nn.utils.clip_grad_norm_(model.parameters(), 5.0)
            optimizer.step()  # 根据梯度更新模型参数
            total_loss += loss.item() * texts.size(0)  # .item()将单元素张量转为Python数值
            _, pred = outputs.max(1)
            correct += pred.eq(labels).sum().item()
            total += labels.size(0)

        val_acc = evaluate_model(model, val_loader, device)
        scheduler.step(total_loss / total)
        print(f"Epoch {epoch+1}: Loss={total_loss/total:.4f}, "
              f"Train Acc={100*correct/total:.2f}%, Val Acc={val_acc:.2f}%")

def evaluate_model(model, loader, device):
    model.eval()  # eval()开启评估模式(关闭Dropout等)
    correct, total = 0, 0
    with torch.no_grad():  # 禁用梯度计算,节省内存
        for texts, labels in loader:
            texts, labels = texts.to(device), labels.to(device)
            _, pred = model(texts).max(1)
            correct += pred.eq(labels).sum().item()
            total += labels.size(0)
    return 100 * correct / total

3. 时间序列预测

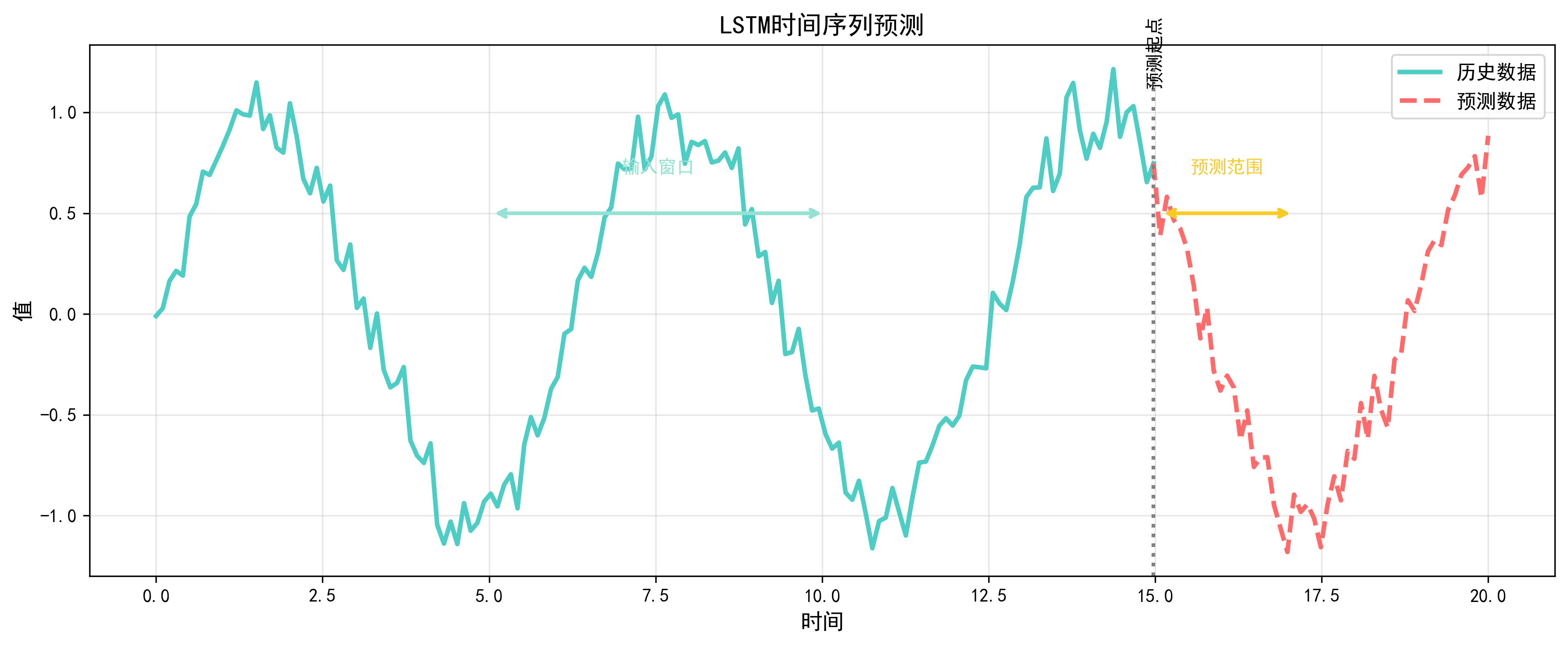

时间序列预测流程图

Python
import numpy as np

class TimeSeriesDataset(Dataset):
    """时间序列数据集"""
    def __init__(self, data, window_size=30, forecast_horizon=1):
        self.data = torch.FloatTensor(data)
        self.window_size = window_size
        self.forecast_horizon = forecast_horizon

    def __len__(self):
        return len(self.data) - self.window_size - self.forecast_horizon + 1

    def __getitem__(self, idx):
        x = self.data[idx:idx+self.window_size].unsqueeze(-1)
        y = self.data[idx+self.window_size:idx+self.window_size+self.forecast_horizon]
        return x, y

class LSTMForecaster(nn.Module):
    """LSTM时间序列预测"""
    def __init__(self, input_dim=1, hidden_dim=64, num_layers=2, forecast_horizon=1):
        super().__init__()
        self.lstm = nn.LSTM(input_dim, hidden_dim, num_layers, batch_first=True, dropout=0.2)
        self.fc = nn.Sequential(
            nn.Linear(hidden_dim, 32),
            nn.ReLU(),
            nn.Linear(32, forecast_horizon)
        )

    def forward(self, x):
        output, (h_n, _) = self.lstm(x)
        return self.fc(h_n[-1])

# 使用示例
# 生成正弦波数据
t = np.linspace(0, 100, 2000)
data = np.sin(t) + 0.1 * np.random.randn(len(t))

dataset = TimeSeriesDataset(data, window_size=50, forecast_horizon=10)
loader = DataLoader(dataset, batch_size=32, shuffle=True)  # DataLoader批量加载数据,支持shuffle和多进程

model = LSTMForecaster(input_dim=1, hidden_dim=64, forecast_horizon=10)

4. 序列到序列模型(Seq2Seq)

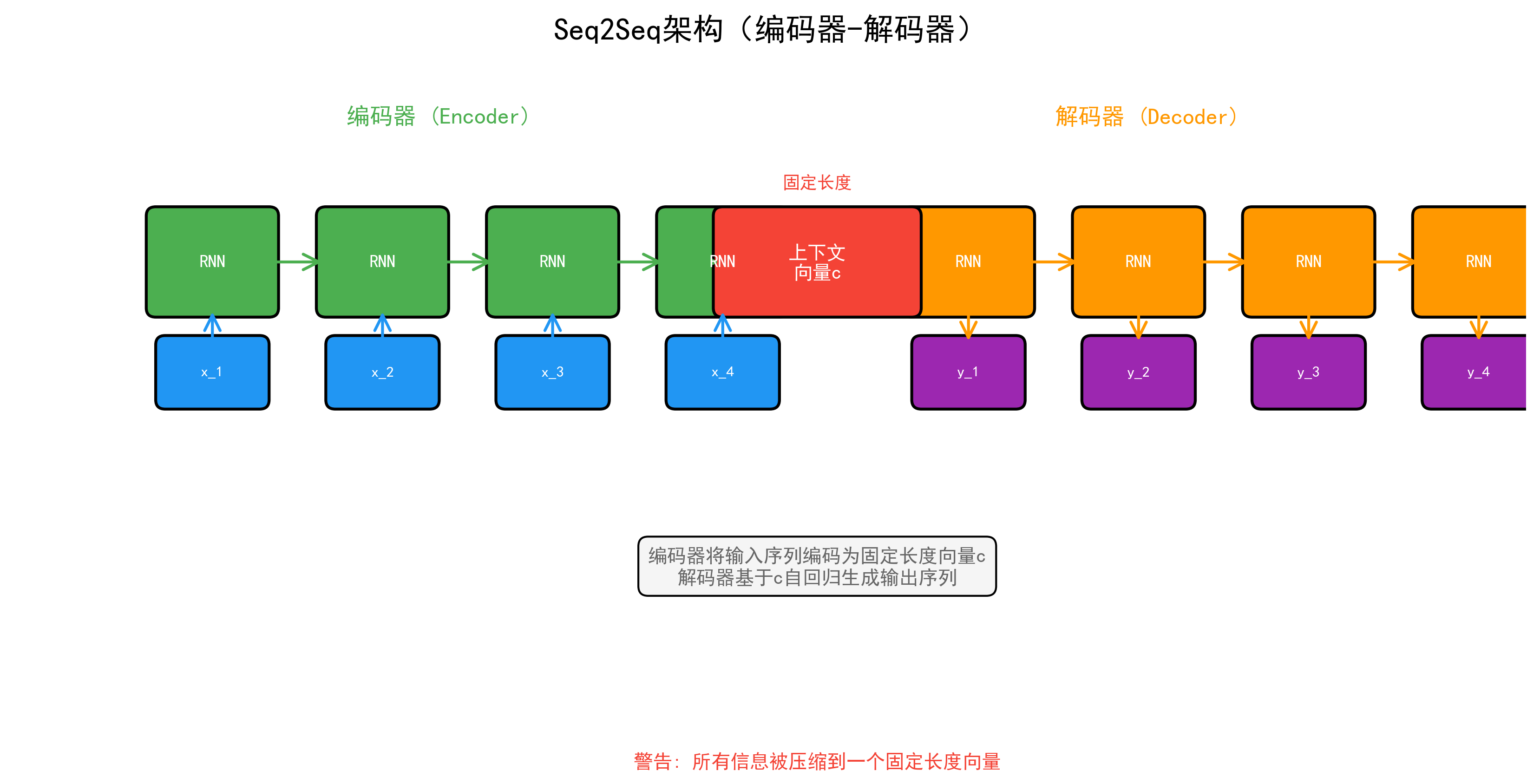

Seq2Seq架构图

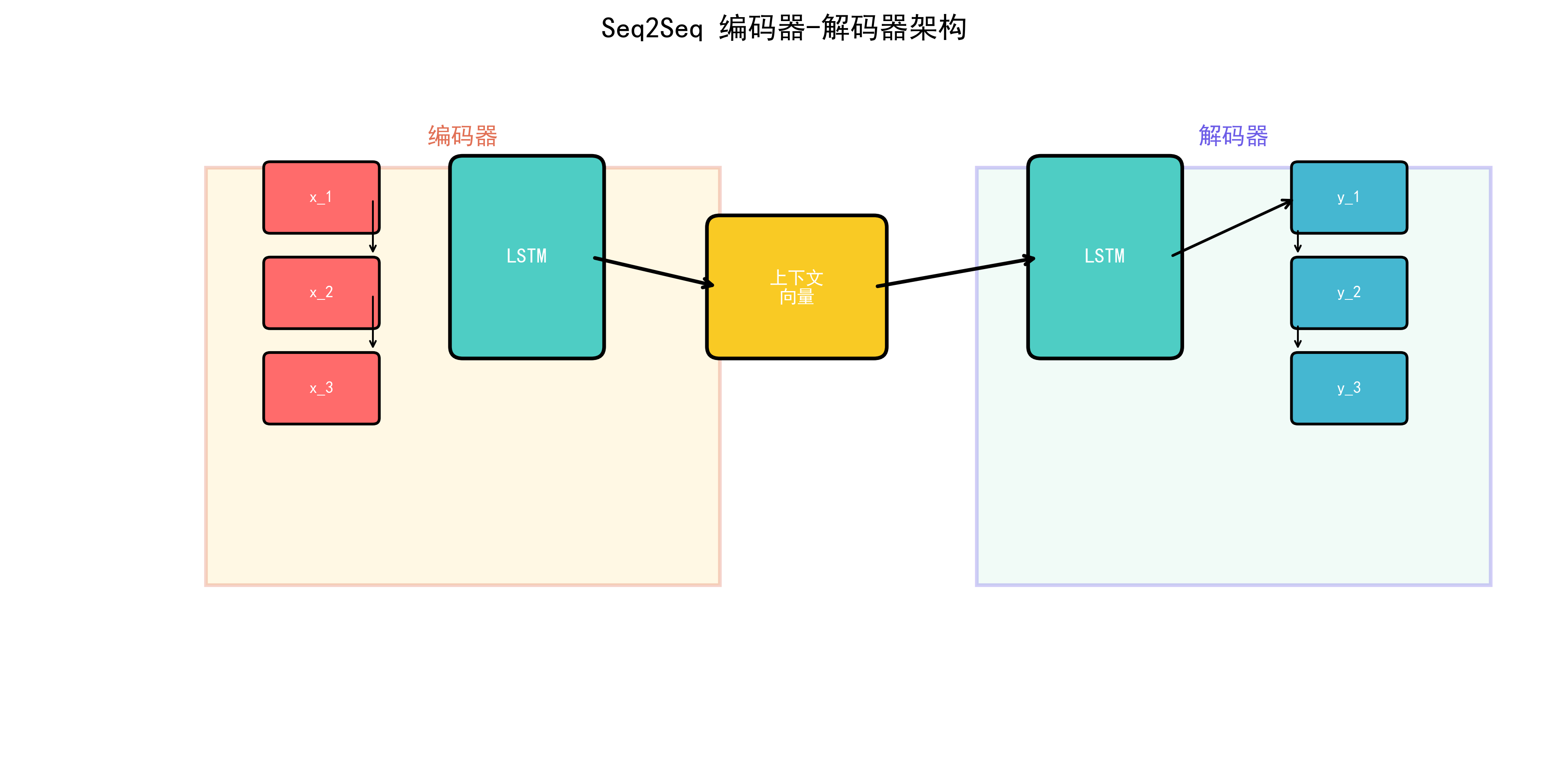

4.1 编码器-解码器架构

Python
class Encoder(nn.Module):
    """Seq2Seq 编码器"""
    def __init__(self, vocab_size, embed_dim, hidden_dim, num_layers=2, dropout=0.5):
        super().__init__()
        self.embedding = nn.Embedding(vocab_size, embed_dim)
        self.lstm = nn.LSTM(embed_dim, hidden_dim, num_layers,
                           batch_first=True, dropout=dropout, bidirectional=True)
        self.fc_h = nn.Linear(hidden_dim * 2, hidden_dim)
        self.fc_c = nn.Linear(hidden_dim * 2, hidden_dim)
        self.dropout = nn.Dropout(dropout)

    def forward(self, src):
        embedded = self.dropout(self.embedding(src))
        outputs, (h_n, c_n) = self.lstm(embedded)

        # 合并双向隐藏状态
        h_n = torch.cat([h_n[0::2], h_n[1::2]], dim=2)
        c_n = torch.cat([c_n[0::2], c_n[1::2]], dim=2)
        h_n = torch.tanh(self.fc_h(h_n))
        c_n = torch.tanh(self.fc_c(c_n))

        return outputs, (h_n, c_n)

class Decoder(nn.Module):
    """Seq2Seq 解码器"""
    def __init__(self, vocab_size, embed_dim, hidden_dim, num_layers=2, dropout=0.5):
        super().__init__()
        self.embedding = nn.Embedding(vocab_size, embed_dim)
        self.lstm = nn.LSTM(embed_dim, hidden_dim, num_layers,
                           batch_first=True, dropout=dropout)
        self.fc_out = nn.Linear(hidden_dim, vocab_size)
        self.dropout = nn.Dropout(dropout)

    def forward(self, trg, hidden):
        embedded = self.dropout(self.embedding(trg))
        output, hidden = self.lstm(embedded, hidden)
        prediction = self.fc_out(output)
        return prediction, hidden

class Seq2Seq(nn.Module):
    def __init__(self, encoder, decoder, device):
        super().__init__()
        self.encoder = encoder
        self.decoder = decoder
        self.device = device

    def forward(self, src, trg, teacher_forcing_ratio=0.5):
        batch_size, trg_len = trg.shape
        trg_vocab_size = self.decoder.fc_out.out_features

        outputs = torch.zeros(batch_size, trg_len, trg_vocab_size, device=self.device)
        enc_outputs, hidden = self.encoder(src)

        input_token = trg[:, 0:1]  # <bos> token

        for t in range(1, trg_len):
            output, hidden = self.decoder(input_token, hidden)
            outputs[:, t:t+1] = output

            # Teacher Forcing
            if torch.rand(1).item() < teacher_forcing_ratio:
                input_token = trg[:, t:t+1]
            else:
                input_token = output.argmax(dim=-1)

        return outputs

5. 注意力机制在序列中的应用

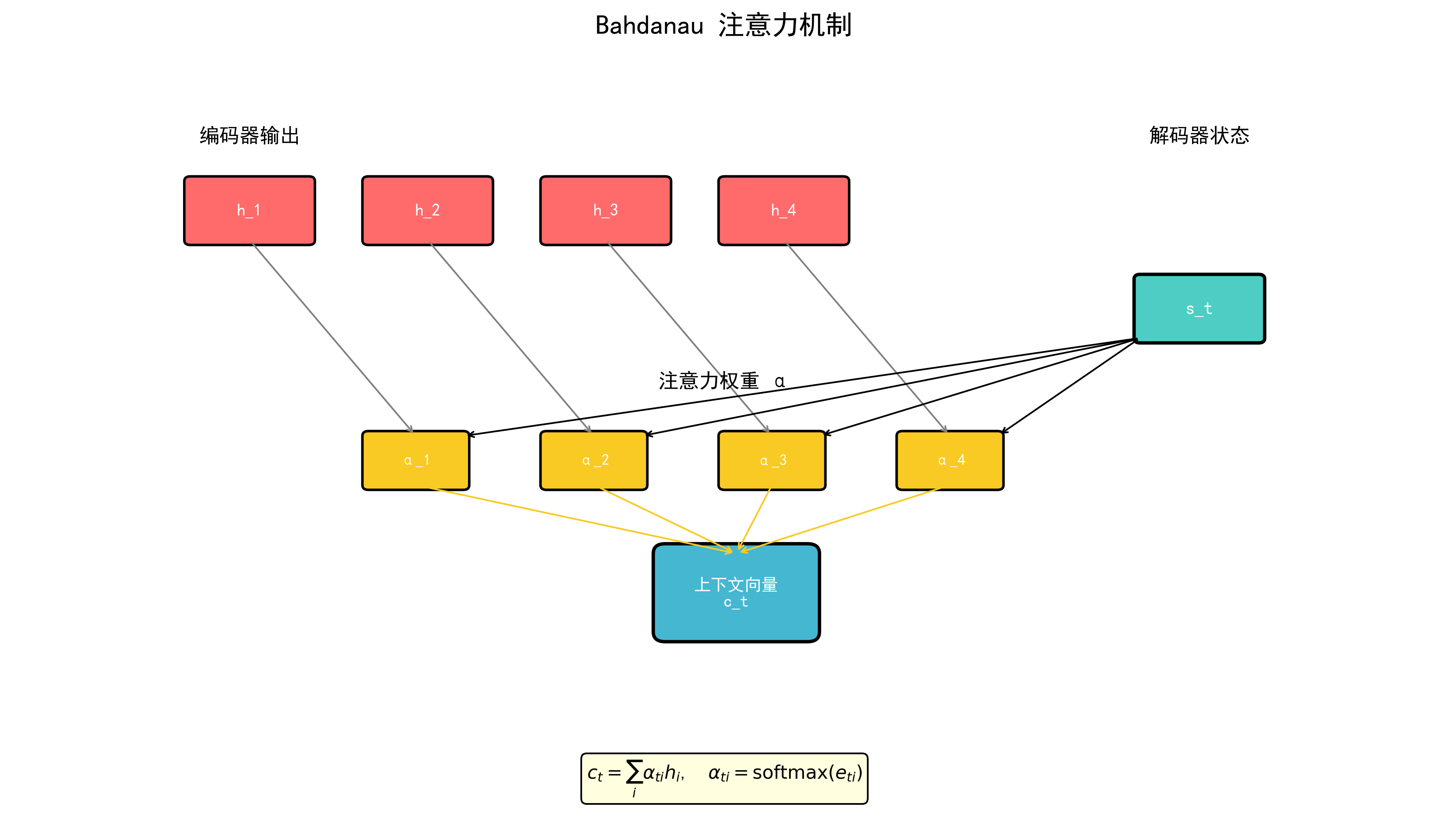

注意力机制示意图

5.1 Bahdanau 注意力(加性注意力)

Python
class BahdanauAttention(nn.Module):
    """Bahdanau (Additive) 注意力"""
    def __init__(self, hidden_dim, enc_dim):
        super().__init__()
        self.W_q = nn.Linear(hidden_dim, hidden_dim)
        self.W_k = nn.Linear(enc_dim, hidden_dim)
        self.v = nn.Linear(hidden_dim, 1)

    def forward(self, query, keys, mask=None):
        """
        query: (batch, 1, hidden_dim)  — 解码器当前隐藏状态
        keys: (batch, src_len, enc_dim) — 编码器所有输出
        """
        scores = self.v(torch.tanh(self.W_q(query) + self.W_k(keys)))
        scores = scores.squeeze(-1)  # (batch, src_len)

        if mask is not None:
            scores = scores.masked_fill(mask == 0, -1e9)

        weights = torch.softmax(scores, dim=-1)
        context = torch.bmm(weights.unsqueeze(1), keys)
        return context, weights

class AttentionDecoder(nn.Module):
    """带注意力的解码器"""
    def __init__(self, vocab_size, embed_dim, hidden_dim, enc_dim):
        super().__init__()
        self.embedding = nn.Embedding(vocab_size, embed_dim)
        self.attention = BahdanauAttention(hidden_dim, enc_dim)
        self.lstm = nn.LSTM(embed_dim + enc_dim, hidden_dim, batch_first=True)
        self.fc_out = nn.Linear(hidden_dim + enc_dim + embed_dim, vocab_size)

    def forward(self, trg_token, hidden, enc_outputs, mask=None):
        embedded = self.embedding(trg_token)

        query = hidden[0][-1:].permute(1, 0, 2)
        context, attn_weights = self.attention(query, enc_outputs, mask)

        lstm_input = torch.cat([embedded, context], dim=-1)
        output, hidden = self.lstm(lstm_input, hidden)

        prediction = self.fc_out(torch.cat([output, context, embedded], dim=-1))
        return prediction, hidden, attn_weights

6. Teacher Forcing

Teacher Forcing 在训练时使用真实标签而非模型预测作为下一步输入。

Python
def train_with_scheduled_teacher_forcing(model, loader, optimizer, criterion,
                                          epoch, total_epochs):
    """带调度的 Teacher Forcing"""
    # 线性衰减 teacher forcing ratio
    tf_ratio = max(0.0, 1.0 - epoch / total_epochs)

    model.train()
    total_loss = 0
    for src, trg in loader:
        optimizer.zero_grad()
        output = model(src, trg, teacher_forcing_ratio=tf_ratio)
        loss = criterion(output[:, 1:].reshape(-1, output.size(-1)), trg[:, 1:].reshape(-1))  # reshape重塑张量形状
        loss.backward()
        torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
        optimizer.step()
        total_loss += loss.item()

    return total_loss / len(loader)

Beam Search解码示意图

Python
def beam_search(model, src, beam_width=5, max_len=50, bos_idx=2, eos_idx=3):
    """Beam Search 解码"""
    model.eval()
    with torch.no_grad():
        enc_outputs, hidden = model.encoder(src)

        # 初始化 beam
        beams = [(torch.tensor([[bos_idx]], device=src.device), hidden, 0.0)]
        completed = []

        for step in range(max_len):
            candidates = []
            for seq, hidden, score in beams:
                if seq[0, -1].item() == eos_idx:
                    completed.append((seq, score))
                    continue

                token = seq[:, -1:]
                output, new_hidden = model.decoder(token, hidden)
                log_probs = torch.log_softmax(output.squeeze(1), dim=-1)

                topk_probs, topk_ids = log_probs.topk(beam_width)

                for i in range(beam_width):
                    new_seq = torch.cat([seq, topk_ids[:, i:i+1]], dim=1)
                    new_score = score + topk_probs[0, i].item()
                    candidates.append((new_seq, new_hidden, new_score))

            if not candidates:
                break

            # 选择得分最高的 beam_width 个
            candidates.sort(key=lambda x: x[2] / x[0].size(1), reverse=True)  # 长度归一化
            beams = candidates[:beam_width]

        # 返回最佳序列
        completed.extend([(seq, score) for seq, _, score in beams])
        completed.sort(key=lambda x: x[1] / x[0].size(1), reverse=True)
        return completed[0][0] if completed else beams[0][0]

8. 完整代码项目:机器翻译

Python
"""
完整的 Seq2Seq + Attention 机器翻译项目框架
"""
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader

def build_translation_model(src_vocab_size, trg_vocab_size, device):
    """构建翻译模型"""
    embed_dim = 256
    hidden_dim = 512
    enc_dim = hidden_dim * 2  # 双向

    encoder = Encoder(src_vocab_size, embed_dim, hidden_dim)
    decoder = AttentionDecoder(trg_vocab_size, embed_dim, hidden_dim, enc_dim)

    model = nn.Module()
    model.encoder = encoder
    model.decoder = decoder
    model = model.to(device)
    return model

def translate(model, sentence, src_vocab, trg_vocab, device, max_len=50):
    """翻译单个句子"""
    model.eval()
    tokens = src_vocab.encode(sentence)
    src = torch.tensor([tokens], device=device)

    with torch.no_grad():
        enc_outputs, hidden = model.encoder(src)

        input_token = torch.tensor([[2]], device=device)  # <bos>
        result = []

        for _ in range(max_len):
            output, hidden, attn = model.decoder(input_token, hidden, enc_outputs)
            next_token = output.argmax(dim=-1)

            if next_token.item() == 3:  # <eos>
                break

            result.append(trg_vocab.idx2word.get(next_token.item(), '<unk>'))
            input_token = next_token

    return ' '.join(result)

# 训练循环
def train_translation(model, train_loader, val_loader, epochs=30, device='cuda'):
    optimizer = optim.Adam(model.parameters(), lr=1e-3)
    criterion = nn.CrossEntropyLoss(ignore_index=0)
    scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, patience=3, factor=0.5)

    for epoch in range(epochs):
        model.train()
        epoch_loss = 0
        for src, trg in train_loader:
            src, trg = src.to(device), trg.to(device)
            tf_ratio = max(0.0, 1.0 - epoch / epochs)

            optimizer.zero_grad()
            # 完整的前向传播和损失计算
            enc_outputs, hidden = model.encoder(src)
            input_token = trg[:, 0:1]
            loss = 0

            for t in range(1, trg.size(1)):
                output, hidden, _ = model.decoder(input_token, hidden, enc_outputs)
                loss += criterion(output.squeeze(1), trg[:, t])

                if torch.rand(1).item() < tf_ratio:
                    input_token = trg[:, t:t+1]
                else:
                    input_token = output.argmax(dim=-1)

            loss.backward()
            torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
            optimizer.step()
            epoch_loss += loss.item()

        avg_loss = epoch_loss / len(train_loader)
        scheduler.step(avg_loss)
        print(f"Epoch {epoch+1}: Loss = {avg_loss:.4f}")

9. 练习与自我检查

练习题

  1. 文本分类:使用 LSTM 在 IMDB 数据集上实现情感分类,达到 85%+ 准确率。
  2. 时间序列:用 LSTM 预测股票价格或气温序列,可视化预测结果。
  3. Seq2Seq:实现一个简单的英文到法文翻译系统。
  4. 注意力可视化:在翻译模型中可视化注意力权重热力图。
  5. Beam Search:实现 Beam Search 并对比贪心解码和 Beam Search 的翻译质量。

自我检查清单

  • 能实现完整的文本预处理流水线(分词→词表→编码→填充)
  • 理解并能实现 LSTM 文本分类器
  • 能用 LSTM 做时间序列预测
  • 理解 Seq2Seq 编码器-解码器架构
  • 理解 Bahdanau 注意力的计算过程
  • 能实现 Teacher Forcing 和调度策略
  • 理解 Beam Search 的原理和实现

下一章: 04-Transformer/01-注意力机制详解
