03-CNN实战与技巧¶

import torch
import torch.nn as nn
import torchvision.models as models

def create_feature_extractor(num_classes=10):
    """特征提取模式：冻结backbone，只训练分类头"""
    model = models.resnet50(weights=models.ResNet50_Weights.IMAGENET1K_V2)

    # 冻结所有参数
    for param in model.parameters():
        param.requires_grad = False

    # 替换分类头（这些参数会被训练）
    num_features = model.fc.in_features
    model.fc = nn.Sequential(
        nn.Dropout(0.5),
        nn.Linear(num_features, 256),
        nn.ReLU(),
        nn.Dropout(0.3),
        nn.Linear(256, num_classes)
    )

    return model

# 只优化分类头的参数
model = create_feature_extractor(num_classes=10)
optimizer = torch.optim.Adam(model.fc.parameters(), lr=1e-3)

def create_finetuning_model(num_classes=10):
    """微调模式：分阶段解冻"""
    model = models.resnet50(weights=models.ResNet50_Weights.IMAGENET1K_V2)

    # 替换分类头
    num_features = model.fc.in_features
    model.fc = nn.Linear(num_features, num_classes)

    return model

def finetune_training(model, train_loader, val_loader, device):
    """分阶段微调训练"""

    # === 阶段1：冻结backbone，训练分类头 ===
    for param in model.parameters():
        param.requires_grad = False
    for param in model.fc.parameters():
        param.requires_grad = True

    optimizer = torch.optim.Adam(model.fc.parameters(), lr=1e-3)
    print("阶段1: 训练分类头...")
    for epoch in range(5):
        train_one_epoch(model, train_loader, optimizer, device)

    # === 阶段2：解冻layer4，微调 ===
    for param in model.layer4.parameters():
        param.requires_grad = True

    optimizer = torch.optim.Adam([
        {'params': model.layer4.parameters(), 'lr': 1e-4},
        {'params': model.fc.parameters(), 'lr': 1e-3},
    ])
    print("阶段2: 微调layer4 + 分类头...")
    for epoch in range(10):
        train_one_epoch(model, train_loader, optimizer, device)

    # === 阶段3：解冻全部，低学习率微调 ===
    for param in model.parameters():
        param.requires_grad = True

    optimizer = torch.optim.Adam([
        {'params': model.conv1.parameters(), 'lr': 1e-6},
        {'params': model.layer1.parameters(), 'lr': 1e-5},
        {'params': model.layer2.parameters(), 'lr': 1e-5},
        {'params': model.layer3.parameters(), 'lr': 5e-5},
        {'params': model.layer4.parameters(), 'lr': 1e-4},
        {'params': model.fc.parameters(), 'lr': 5e-4},
    ])
    print("阶段3: 全部微调...")
    for epoch in range(15):
        train_one_epoch(model, train_loader, optimizer, device)

def train_one_epoch(model, loader, optimizer, device):
    model.train()  # train()开启训练模式
    criterion = nn.CrossEntropyLoss()
    for inputs, targets in loader:
        inputs, targets = inputs.to(device), targets.to(device)  # .to(device)将数据移至GPU/CPU
        optimizer.zero_grad()  # 清零梯度，防止梯度累积
        outputs = model(inputs)
        loss = criterion(outputs, targets)
        loss.backward()  # 反向传播计算梯度
        optimizer.step()  # 根据梯度更新模型参数

import numpy as np
import torch

class MixupTrainer:
    def __init__(self, alpha=0.2):  # __init__构造方法，创建对象时自动调用
        self.alpha = alpha

    def mixup_data(self, x, y):
        lam = np.random.beta(self.alpha, self.alpha) if self.alpha > 0 else 1.0
        batch_size = x.size(0)
        index = torch.randperm(batch_size, device=x.device)
        mixed_x = lam * x + (1 - lam) * x[index]
        return mixed_x, y, y[index], lam

    def mixup_criterion(self, criterion, pred, y_a, y_b, lam):
        return lam * criterion(pred, y_a) + (1 - lam) * criterion(pred, y_b)

    def train_step(self, model, inputs, targets, optimizer, criterion):
        mixed_inputs, targets_a, targets_b, lam = self.mixup_data(inputs, targets)
        outputs = model(mixed_inputs)
        loss = self.mixup_criterion(criterion, outputs, targets_a, targets_b, lam)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()
        return loss.item()  # .item()将单元素张量转为Python数值

def cutmix_data(x, y, alpha=1.0):
    lam = np.random.beta(alpha, alpha)
    batch_size = x.size(0)
    index = torch.randperm(batch_size, device=x.device)

    _, _, H, W = x.shape
    cut_ratio = np.sqrt(1 - lam)
    rH, rW = int(H * cut_ratio), int(W * cut_ratio)

    cx, cy = np.random.randint(W), np.random.randint(H)
    x1, y1 = max(cx - rW//2, 0), max(cy - rH//2, 0)
    x2, y2 = min(cx + rW//2, W), min(cy + rH//2, H)

    mixed = x.clone()
    mixed[:, :, y1:y2, x1:x2] = x[index, :, y1:y2, x1:x2]

    lam = 1 - (y2-y1)*(x2-x1)/(H*W)
    return mixed, y, y[index], lam

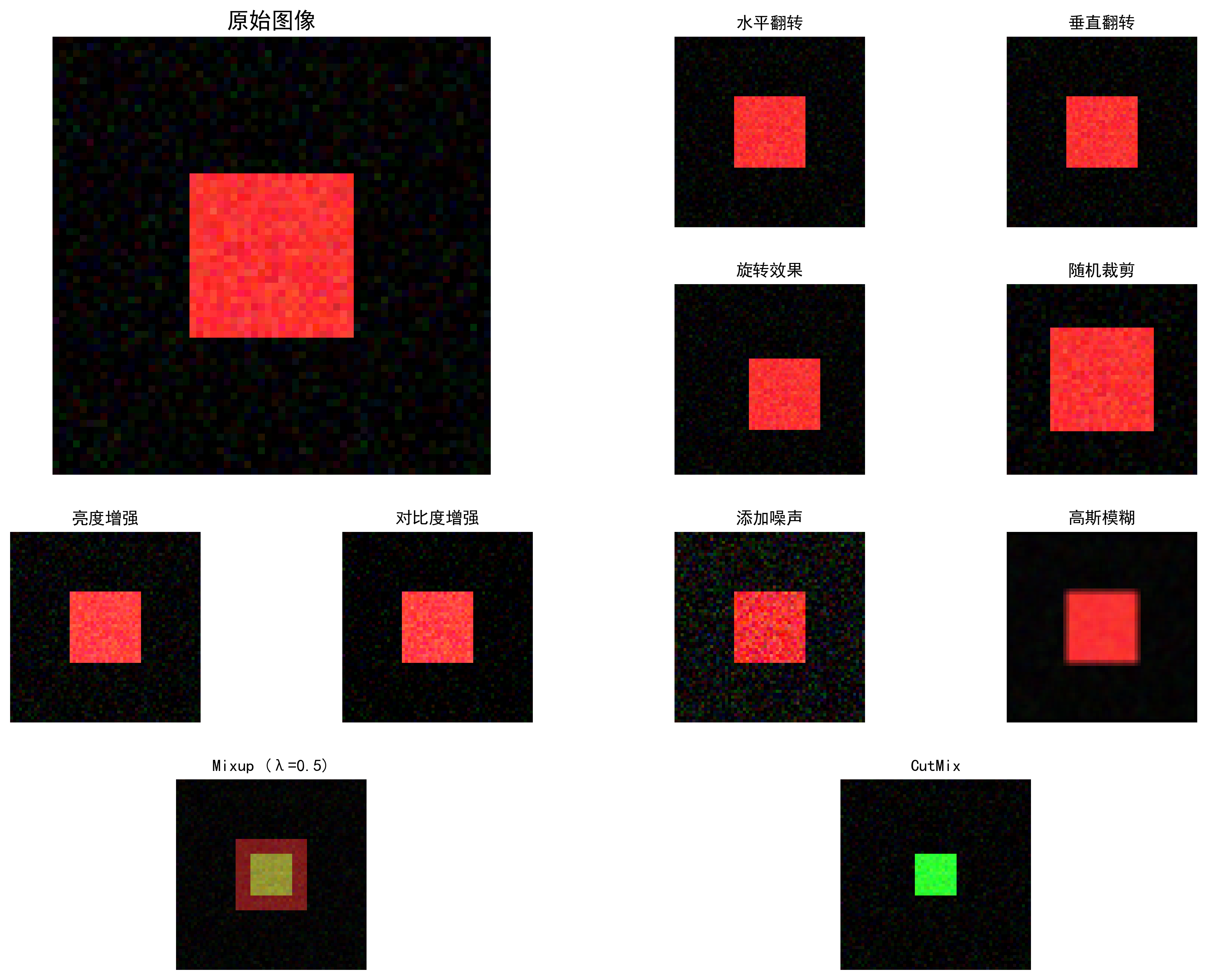

import torchvision.transforms as T

# AutoAugment（自动搜索的增强策略）
auto_augment = T.Compose([
    T.AutoAugment(policy=T.AutoAugmentPolicy.CIFAR10),
    T.ToTensor(),
    T.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
])

# RandAugment（更简单高效的替代方案）
rand_augment = T.Compose([
    T.RandAugment(num_ops=2, magnitude=9),  # 随机选择2个增强操作，强度9
    T.ToTensor(),
    T.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
])

# TrivialAugment（最简单的方案，效果也很好）
trivial_augment = T.Compose([
    T.TrivialAugmentWide(),
    T.ToTensor(),
    T.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
])

class ModelEnsemble(nn.Module):  # 继承nn.Module定义神经网络层
    """模型集成"""
    def __init__(self, models, method='average'):
        super().__init__()  # super()调用父类方法
        self.models = nn.ModuleList(models)
        self.method = method

    def forward(self, x):
        outputs = [model(x) for model in self.models]  # 列表推导式，简洁创建列表

        if self.method == 'average':
            return torch.stack(outputs).mean(dim=0)  # 链式调用，连续执行多个方法
        elif self.method == 'vote':
            preds = [o.argmax(dim=1) for o in outputs]
            stacked = torch.stack(preds, dim=0)  # (num_models, batch)
            return torch.mode(stacked, dim=0).values
        elif self.method == 'weighted':
            weights = torch.tensor([0.4, 0.3, 0.3], device=x.device)
            return sum(w * o for w, o in zip(weights, outputs))  # zip按位置配对多个可迭代对象

# TTA（测试时增强）
def test_time_augmentation(model, image, n_augments=10):
    """测试时增强：对同一图像做多种变换后取平均"""
    tta_transforms = T.Compose([
        T.RandomHorizontalFlip(),
        T.RandomCrop(32, padding=4),
    ])

    model.eval()  # eval()开启评估模式（关闭Dropout等）
    predictions = []
    with torch.no_grad():  # 禁用梯度计算，节省内存
        # 原始图像
        predictions.append(torch.softmax(model(image.unsqueeze(0)), dim=1))
        # 增强后的图像
        for _ in range(n_augments - 1):
            augmented = tta_transforms(image)
            pred = torch.softmax(model(augmented.unsqueeze(0)), dim=1)
            predictions.append(pred)

    return torch.stack(predictions).mean(dim=0)

import torch
import torch.nn.functional as F
import numpy as np

class GradCAM:
    """Grad-CAM 可视化"""
    def __init__(self, model, target_layer):
        self.model = model
        self.target_layer = target_layer
        self.gradients = None
        self.activations = None

        # 注册钩子
        target_layer.register_forward_hook(self._forward_hook)
        target_layer.register_full_backward_hook(self._backward_hook)

    def _forward_hook(self, module, input, output):
        self.activations = output.detach()  # detach()从计算图分离，不参与梯度计算

    def _backward_hook(self, module, grad_input, grad_output):
        self.gradients = grad_output[0].detach()

    def generate(self, input_image, target_class=None):
        """生成 Grad-CAM 热力图"""
        self.model.eval()
        output = self.model(input_image)

        if target_class is None:
            target_class = output.argmax(dim=1).item()

        # 反向传播目标类的得分
        self.model.zero_grad()
        one_hot = torch.zeros_like(output)
        one_hot[0, target_class] = 1
        output.backward(gradient=one_hot)

        # 计算权重：对梯度做全局平均池化
        weights = self.gradients.mean(dim=(2, 3), keepdim=True)  # (1, C, 1, 1)

        # 加权求和
        cam = (weights * self.activations).sum(dim=1, keepdim=True)  # (1, 1, H, W)
        cam = F.relu(cam)  # 只关注正贡献

        # 归一化到 [0, 1]
        cam = cam - cam.min()
        cam = cam / (cam.max() + 1e-8)

        # 上采样到输入大小
        cam = F.interpolate(cam, size=input_image.shape[2:], mode='bilinear', align_corners=False)

        return cam.squeeze().cpu().numpy()  # squeeze去除大小为1的维度

    def visualize(self, image, cam, alpha=0.5):
        """叠加可视化"""
        import matplotlib.pyplot as plt

        fig, axes = plt.subplots(1, 3, figsize=(15, 5))

        # 原始图像
        img = image.squeeze().permute(1, 2, 0).cpu().numpy()
        img = (img - img.min()) / (img.max() - img.min())
        axes[0].imshow(img)
        axes[0].set_title('原始图像')
        axes[0].axis('off')

        # CAM 热力图
        axes[1].imshow(cam, cmap='jet')
        axes[1].set_title('Grad-CAM')
        axes[1].axis('off')

        # 叠加
        axes[2].imshow(img)
        axes[2].imshow(cam, cmap='jet', alpha=alpha)
        axes[2].set_title('叠加')
        axes[2].axis('off')

        plt.tight_layout()
        plt.show()

# 使用示例
# model = models.resnet50(weights=models.ResNet50_Weights.IMAGENET1K_V2)
# gradcam = GradCAM(model, model.layer4[-1])
# image = torch.randn(1, 3, 224, 224)
# cam = gradcam.generate(image)
# gradcam.visualize(image, cam)

class LabelSmoothingCrossEntropy(nn.Module):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing

    def forward(self, pred, target):
        n_classes = pred.size(-1)
        log_prob = F.log_softmax(pred, dim=-1)

        # 真实标签的对数概率
        nll_loss = -log_prob.gather(dim=-1, index=target.unsqueeze(1)).squeeze(1)
        # 均匀分布的对数概率
        smooth_loss = -log_prob.mean(dim=-1)

        loss = (1 - self.smoothing) * nll_loss + self.smoothing * smooth_loss
        return loss.mean()

# 或直接使用 PyTorch 内置
criterion = nn.CrossEntropyLoss(label_smoothing=0.1)

class EMA:
    """Exponential Moving Average"""
    def __init__(self, model, decay=0.9999):
        self.model = model
        self.decay = decay
        self.shadow = {}
        self.backup = {}

        for name, param in model.named_parameters():
            if param.requires_grad:
                self.shadow[name] = param.data.clone()

    def update(self):
        for name, param in self.model.named_parameters():
            if param.requires_grad:
                self.shadow[name] = self.decay * self.shadow[name] + (1 - self.decay) * param.data

    def apply_shadow(self):
        for name, param in self.model.named_parameters():
            if param.requires_grad:
                self.backup[name] = param.data
                param.data = self.shadow[name]

    def restore(self):
        for name, param in self.model.named_parameters():
            if param.requires_grad:
                param.data = self.backup[name]
        self.backup = {}

"""
完整的 CIFAR-10 图像分类项目
综合使用：迁移学习 + 数据增强 + Mixup + Label Smoothing + Cosine LR + EMA
"""
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
import torchvision
import torchvision.transforms as T
import torchvision.models as models
from tqdm import tqdm

# ===== 配置 =====
class Config:
    # 数据
    batch_size = 128
    num_workers = 4
    num_classes = 10

    # 训练
    epochs = 100
    lr = 0.1
    weight_decay = 5e-4
    momentum = 0.9
    label_smoothing = 0.1

    # 增强
    mixup_alpha = 0.2
    cutmix_alpha = 1.0
    mixup_prob = 0.5  # Mixup vs CutMix 的概率

    # EMA
    ema_decay = 0.9999

    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

config = Config()

# ===== 数据准备 =====
transform_train = T.Compose([
    T.RandomCrop(32, padding=4),
    T.RandomHorizontalFlip(),
    T.RandAugment(num_ops=2, magnitude=9),
    T.ToTensor(),
    T.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
    T.RandomErasing(p=0.25),
])

transform_test = T.Compose([
    T.ToTensor(),
    T.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
])

trainset = torchvision.datasets.CIFAR10('./data', train=True, download=True, transform=transform_train)
testset = torchvision.datasets.CIFAR10('./data', train=False, download=True, transform=transform_test)
train_loader = DataLoader(trainset, batch_size=config.batch_size, shuffle=True, num_workers=config.num_workers)  # DataLoader批量加载数据，支持shuffle和多进程
test_loader = DataLoader(testset, batch_size=config.batch_size, shuffle=False, num_workers=config.num_workers)

# ===== 模型 =====
model = models.resnet18(weights=None)
model.conv1 = nn.Conv2d(3, 64, kernel_size=3, stride=1, padding=1, bias=False)  # 适配32x32
model.maxpool = nn.Identity()  # 移除maxpool
model.fc = nn.Linear(512, config.num_classes)
model = model.to(config.device)

# ===== 训练组件 =====
criterion = nn.CrossEntropyLoss(label_smoothing=config.label_smoothing)
optimizer = optim.SGD(model.parameters(), lr=config.lr, momentum=config.momentum, weight_decay=config.weight_decay)
scheduler = optim.lr_scheduler.CosineAnnealingLR(optimizer, T_max=config.epochs)
ema = EMA(model, decay=config.ema_decay)

# ===== 训练循环 =====
def train_epoch(model, loader, optimizer, criterion, config):
    model.train()
    total_loss, correct, total = 0, 0, 0

    for inputs, targets in loader:
        inputs, targets = inputs.to(config.device), targets.to(config.device)

        # 随机选择 Mixup 或 CutMix
        if np.random.random() < config.mixup_prob:
            inputs, targets_a, targets_b, lam = mixup_data(inputs, targets, config.mixup_alpha)
        else:
            inputs, targets_a, targets_b, lam = cutmix_data(inputs, targets, config.cutmix_alpha)

        outputs = model(inputs)
        loss = lam * criterion(outputs, targets_a) + (1 - lam) * criterion(outputs, targets_b)

        optimizer.zero_grad()
        loss.backward()
        torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)
        optimizer.step()
        ema.update()

        total_loss += loss.item() * inputs.size(0)
        _, predicted = outputs.max(1)
        total += targets.size(0)
        correct += (lam * predicted.eq(targets_a).float() + (1-lam) * predicted.eq(targets_b).float()).sum().item()

    return total_loss / total, 100. * correct / total

@torch.no_grad()
def evaluate(model, loader, device):
    model.eval()
    correct, total = 0, 0
    for inputs, targets in loader:
        inputs, targets = inputs.to(device), targets.to(device)
        outputs = model(inputs)
        _, predicted = outputs.max(1)
        total += targets.size(0)
        correct += predicted.eq(targets).sum().item()
    return 100. * correct / total

# ===== 主训练循环 =====
best_acc = 0
for epoch in range(config.epochs):
    train_loss, train_acc = train_epoch(model, train_loader, optimizer, criterion, config)

    # 使用 EMA 权重评估
    ema.apply_shadow()
    test_acc = evaluate(model, test_loader, config.device)
    ema.restore()

    scheduler.step()
    lr = optimizer.param_groups[0]['lr']
    print(f"Epoch {epoch+1}/{config.epochs} | LR: {lr:.6f} | "
          f"Train Loss: {train_loss:.4f} | Train Acc: {train_acc:.2f}% | Test Acc: {test_acc:.2f}%")

    if test_acc > best_acc:
        best_acc = test_acc
        ema.apply_shadow()
        torch.save(model.state_dict(), 'best_model.pth')
        ema.restore()

print(f"\n最佳测试准确率: {best_acc:.2f}%")
