项目1: 图像分类实战¶
难度: ⭐⭐⭐ 中等 时间: 10-15小时 涉及知识: CNN、PyTorch、数据增强、迁移学习
📖 项目概述¶
项目背景¶
图像分类是计算机视觉的核心任务之一，广泛应用于医疗诊断、自动驾驶、安防监控等领域。本项目将带你从零开始构建一个完整的图像分类系统，涵盖数据准备、模型设计、训练优化到部署的全流程。
项目目标¶
构建一个完整的图像分类系统，能够： - 处理大规模图像数据集 - 实现多种CNN架构 - 应用数据增强技术 - 使用迁移学习提升性能 - 进行模型评估和可视化 - 部署模型为Web服务
技术栈¶
- 深度学习框架: PyTorch
- 数据处理: torchvision, PIL
- 可视化: matplotlib, tensorboard
- Web框架: FastAPI
- 前端: Streamlit
🏗️ 项目结构¶
Text Only
image-classification/
├── data/ # 数据目录
│ ├── raw/ # 原始数据
│ ├── processed/ # 处理后数据
│ └── augment/ # 增强数据
├── models/ # 模型目录
│ ├── __init__.py
│ ├── cnn.py # CNN模型
│ ├── resnet.py # ResNet模型
│ └── vgg.py # VGG模型
├── utils/ # 工具函数
│ ├── __init__.py
│ ├── data_loader.py # 数据加载
│ ├── augmentation.py # 数据增强
│ ├── metrics.py # 评估指标
│ └── visualization.py # 可视化
├── train.py # 训练脚本
├── evaluate.py # 评估脚本
├── inference.py # 推理脚本
├── app.py # Web应用
├── config.py # 配置文件
├── requirements.txt # 依赖文件
└── README.md # 项目说明
🎯 核心功能¶
1. 数据处理¶
- 数据加载: 高效加载图像数据
- 数据预处理: 归一化、调整大小
- 数据增强: 旋转、翻转、裁剪等
- 数据划分: 训练集、验证集、测试集
2. 模型设计¶
- 基础CNN: 自定义CNN架构
- ResNet: 残差网络
- VGG: 经典VGG架构
- 迁移学习: 使用预训练模型
3. 训练优化¶
- 损失函数: 交叉熵损失
- 优化器: SGD, Adam
- 学习率调度: StepLR, CosineAnnealingLR
- 早停机制: 防止过拟合
4. 评估分析¶
- 准确率: Top-1和Top-5准确率

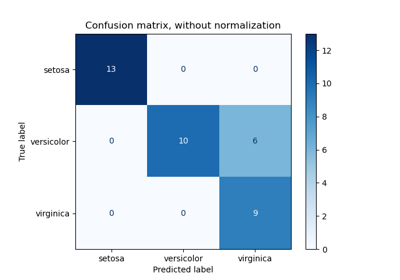

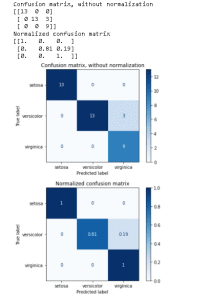

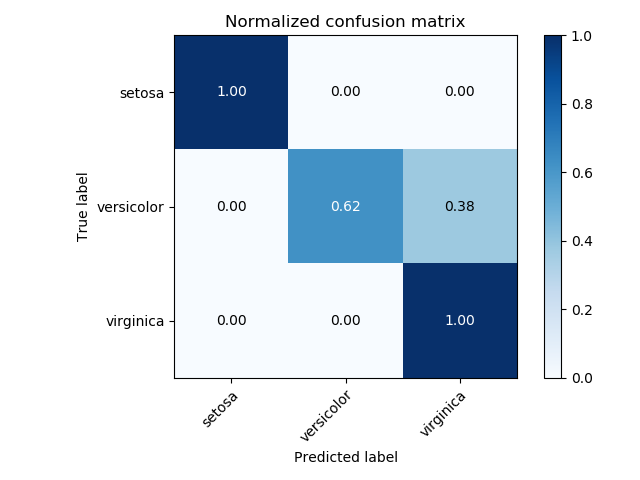

- 混淆矩阵: 可视化分类结果
- ROC曲线: 评估分类性能
- 错误分析: 分析错误样本
5. 模型部署¶
- 模型保存: 保存最佳模型
- 模型加载: 加载训练好的模型
- 批量推理: 批量处理图像
- Web服务: 提供REST API
💻 代码实现¶
1. 配置文件 (config.py)¶
Python
"""
图像分类配置文件
"""
import torch
from dataclasses import dataclass
@dataclass # @dataclass自动生成__init__等方法
class Config:
"""配置类"""
# 数据配置
data_dir: str = "./data"
batch_size: int = 32
num_workers: int = 4
image_size: tuple[int, int] = (224, 224)
# 模型配置
num_classes: int = 10
model_type: str = "resnet18" # cnn, resnet18, resnet50, vgg16
pretrained: bool = True
# 训练配置
num_epochs: int = 50
learning_rate: float = 0.001
weight_decay: float = 1e-4
momentum: float = 0.9
# 学习率调度
lr_scheduler: str = "step" # step, cosine
step_size: int = 10
gamma: float = 0.1
# 早停配置
early_stopping: bool = True
patience: int = 10
# 设备配置
device: str = "cuda" if torch.cuda.is_available() else "cpu"
# 保存配置
checkpoint_dir: str = "./checkpoints"
log_dir: str = "./logs"
config = Config()
2. 数据加载器 (utils/data_loader.py)¶
Python
"""
数据加载器
"""
import torch
from torch.utils.data import DataLoader, Dataset
from torchvision import datasets, transforms
from PIL import Image
import os
class CustomDataset(Dataset):
"""自定义数据集"""
def __init__(self, root_dir, transform=None): # __init__构造方法，创建对象时自动调用
"""
初始化数据集
Args:
root_dir: 数据根目录
transform: 数据变换
"""
self.root_dir = root_dir
self.transform = transform
self.images = []
self.labels = []
# 加载数据
self._load_data()
def _load_data(self):
"""加载数据"""
classes = sorted(os.listdir(self.root_dir))
self.class_to_idx = {cls: idx for idx, cls in enumerate(classes)} # enumerate同时获取索引和元素
for class_name in classes:
class_dir = os.path.join(self.root_dir, class_name)
class_idx = self.class_to_idx[class_name]
for img_name in os.listdir(class_dir):
img_path = os.path.join(class_dir, img_name)
self.images.append(img_path)
self.labels.append(class_idx)
def __len__(self): # __len__定义len()的行为
return len(self.images)
def __getitem__(self, idx): # __getitem__定义索引访问行为
"""获取数据项"""
img_path = self.images[idx]
label = self.labels[idx]
# 加载图像
image = Image.open(img_path).convert('RGB')
# 应用变换
if self.transform:
image = self.transform(image)
return image, label
def get_data_loaders(config):
"""
获取数据加载器
Args:
config: 配置对象
Returns:
训练、验证、测试数据加载器
"""
# 训练数据变换（包含增强）
train_transform = transforms.Compose([
transforms.RandomResizedCrop(config.image_size),
transforms.RandomHorizontalFlip(),
transforms.RandomRotation(15),
transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]),
])
# 验证和测试数据变换
test_transform = transforms.Compose([
transforms.Resize(256),
transforms.CenterCrop(config.image_size),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]),
])
# 创建数据集
train_dataset = CustomDataset(
os.path.join(config.data_dir, 'train'),
transform=train_transform
)
val_dataset = CustomDataset(
os.path.join(config.data_dir, 'val'),
transform=test_transform
)
test_dataset = CustomDataset(
os.path.join(config.data_dir, 'test'),
transform=test_transform
)
# 创建数据加载器
train_loader = DataLoader(
train_dataset,
batch_size=config.batch_size,
shuffle=True,
num_workers=config.num_workers,
pin_memory=True
)
val_loader = DataLoader(
val_dataset,
batch_size=config.batch_size,
shuffle=False,
num_workers=config.num_workers,
pin_memory=True
)
test_loader = DataLoader(
test_dataset,
batch_size=config.batch_size,
shuffle=False,
num_workers=config.num_workers,
pin_memory=True
)
return train_loader, val_loader, test_loader
3. CNN模型 (models/cnn.py)¶
Python
"""
CNN模型
"""
import torch
import torch.nn as nn
import torch.nn.functional as F
class SimpleCNN(nn.Module): # 继承nn.Module定义神经网络层
"""简单的CNN模型"""
def __init__(self, num_classes=10):
"""
初始化模型
Args:
num_classes: 类别数
"""
super(SimpleCNN, self).__init__()
# 特征提取层
self.features = nn.Sequential(
# 卷积块1
nn.Conv2d(3, 32, kernel_size=3, padding=1),
nn.BatchNorm2d(32),
nn.ReLU(inplace=True),
nn.MaxPool2d(kernel_size=2, stride=2),
# 卷积块2
nn.Conv2d(32, 64, kernel_size=3, padding=1),
nn.BatchNorm2d(64),
nn.ReLU(inplace=True),
nn.MaxPool2d(kernel_size=2, stride=2),
# 卷积块3
nn.Conv2d(64, 128, kernel_size=3, padding=1),
nn.BatchNorm2d(128),
nn.ReLU(inplace=True),
nn.MaxPool2d(kernel_size=2, stride=2),
)
# 分类层
self.classifier = nn.Sequential(
nn.Dropout(0.5),
nn.Linear(128 * 28 * 28, 512),
nn.ReLU(inplace=True),
nn.Dropout(0.5),
nn.Linear(512, num_classes),
)
def forward(self, x):
"""前向传播"""
x = self.features(x)
x = x.view(x.size(0), -1)
x = self.classifier(x)
return x
class ResidualBlock(nn.Module):
"""残差块"""
def __init__(self, in_channels, out_channels, stride=1):
"""
初始化残差块
Args:
in_channels: 输入通道数
out_channels: 输出通道数
stride: 步长
"""
super(ResidualBlock, self).__init__()
self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3,
stride=stride, padding=1, bias=False)
self.bn1 = nn.BatchNorm2d(out_channels)
self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3,
stride=1, padding=1, bias=False)
self.bn2 = nn.BatchNorm2d(out_channels)
self.shortcut = nn.Sequential()
if stride != 1 or in_channels != out_channels:
self.shortcut = nn.Sequential(
nn.Conv2d(in_channels, out_channels, kernel_size=1,
stride=stride, bias=False),
nn.BatchNorm2d(out_channels)
)
def forward(self, x):
"""前向传播"""
out = F.relu(self.bn1(self.conv1(x)))
out = self.bn2(self.conv2(out))
out += self.shortcut(x)
out = F.relu(out)
return out
class ResNet(nn.Module):
"""ResNet模型"""
def __init__(self, block, num_blocks, num_classes=10):
"""
初始化ResNet
Args:
block: 残差块类型
num_blocks: 每层的块数列表
num_classes: 类别数
"""
super(ResNet, self).__init__()
self.in_channels = 64
self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3,
bias=False)
self.bn1 = nn.BatchNorm2d(64)
self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
self.layer1 = self._make_layer(block, 64, num_blocks[0], stride=1)
self.layer2 = self._make_layer(block, 128, num_blocks[1], stride=2)
self.layer3 = self._make_layer(block, 256, num_blocks[2], stride=2)
self.layer4 = self._make_layer(block, 512, num_blocks[3], stride=2)
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
self.fc = nn.Linear(512, num_classes)
def _make_layer(self, block, out_channels, num_blocks, stride):
"""创建层"""
layers = []
layers.append(block(self.in_channels, out_channels, stride))
self.in_channels = out_channels
for _ in range(1, num_blocks):
layers.append(block(out_channels, out_channels))
return nn.Sequential(*layers)
def forward(self, x):
"""前向传播"""
x = F.relu(self.bn1(self.conv1(x)))
x = self.maxpool(x)
x = self.layer1(x)
x = self.layer2(x)
x = self.layer3(x)
x = self.layer4(x)
x = self.avgpool(x)
x = x.view(x.size(0), -1)
x = self.fc(x)
return x
def resnet18(num_classes=10):
"""创建ResNet-18"""
return ResNet(ResidualBlock, [2, 2, 2, 2], num_classes)
4. 训练脚本 (train.py)¶
Python
"""
训练脚本
"""
import torch
import torch.nn as nn
import torch.optim as optim
from torch.optim.lr_scheduler import StepLR, CosineAnnealingLR
from tqdm import tqdm
import os
from torch.utils.tensorboard import SummaryWriter
from config import config
from utils.data_loader import get_data_loaders
from models.cnn import SimpleCNN, resnet18
from utils.metrics import AverageMeter, accuracy
class EarlyStopping:
"""早停机制"""
def __init__(self, patience=10, min_delta=0):
"""
初始化早停
Args:
patience: 耐心值
min_delta: 最小改进
"""
self.patience = patience
self.min_delta = min_delta
self.counter = 0
self.best_score = None
self.early_stop = False
def __call__(self, val_loss): # __call__使实例可像函数一样被调用
"""检查是否早停"""
if self.best_score is None:
self.best_score = val_loss
elif val_loss > self.best_score - self.min_delta:
self.counter += 1
if self.counter >= self.patience:
self.early_stop = True
else:
self.best_score = val_loss
self.counter = 0
def train_epoch(model, train_loader, criterion, optimizer, device, epoch):
"""训练一个epoch"""
model.train() # train()开启训练模式
losses = AverageMeter()
accs = AverageMeter()
pbar = tqdm(train_loader, desc=f"Epoch {epoch}")
for images, labels in pbar:
images, labels = images.to(device), labels.to(device) # .to(device)将数据移至GPU/CPU
# 前向传播
outputs = model(images)
loss = criterion(outputs, labels)
# 反向传播
optimizer.zero_grad()
loss.backward() # 反向传播计算梯度
optimizer.step() # 根据梯度更新模型参数
# 计算准确率
acc = accuracy(outputs, labels, topk=(1,))[0]
# 更新统计
losses.update(loss.item(), images.size(0))
accs.update(acc.item(), images.size(0))
# 更新进度条
pbar.set_postfix({
'loss': f'{losses.avg:.4f}',
'acc': f'{accs.avg:.2%}'
})
return losses.avg, accs.avg
def validate(model, val_loader, criterion, device):
"""验证模型"""
model.eval() # eval()开启评估模式（关闭Dropout等）
losses = AverageMeter()
accs = AverageMeter()
with torch.no_grad(): # 禁用梯度计算，节省内存
for images, labels in val_loader:
images, labels = images.to(device), labels.to(device)
# 前向传播
outputs = model(images)
loss = criterion(outputs, labels)
# 计算准确率
acc = accuracy(outputs, labels, topk=(1,))[0]
# 更新统计
losses.update(loss.item(), images.size(0))
accs.update(acc.item(), images.size(0))
return losses.avg, accs.avg
def train():
"""训练模型"""
# 创建保存目录
os.makedirs(config.checkpoint_dir, exist_ok=True)
os.makedirs(config.log_dir, exist_ok=True)
# 创建数据加载器
train_loader, val_loader, _ = get_data_loaders(config)
# 创建模型
if config.model_type == 'cnn':
model = SimpleCNN(config.num_classes)
elif config.model_type == 'resnet18':
model = resnet18(config.num_classes)
else:
raise ValueError(f"Unknown model type: {config.model_type}")
model = model.to(config.device)
# 定义损失函数和优化器
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(
model.parameters(),
lr=config.learning_rate,
momentum=config.momentum,
weight_decay=config.weight_decay
)
# 学习率调度器
if config.lr_scheduler == 'step':
scheduler = StepLR(optimizer, step_size=config.step_size, gamma=config.gamma)
elif config.lr_scheduler == 'cosine':
scheduler = CosineAnnealingLR(optimizer, T_max=config.num_epochs)
else:
scheduler = None
# 早停
early_stopping = EarlyStopping(patience=config.patience) if config.early_stopping else None
# TensorBoard
writer = SummaryWriter(config.log_dir)
# 训练循环
best_val_acc = 0.0
for epoch in range(config.num_epochs):
print(f"\nEpoch {epoch + 1}/{config.num_epochs}")
# 训练
train_loss, train_acc = train_epoch(
model, train_loader, criterion, optimizer, config.device, epoch
)
# 验证
val_loss, val_acc = validate(model, val_loader, criterion, config.device)
# 学习率调度
if scheduler:
scheduler.step()
# 记录
writer.add_scalar('Loss/train', train_loss, epoch)
writer.add_scalar('Loss/val', val_loss, epoch)
writer.add_scalar('Accuracy/train', train_acc, epoch)
writer.add_scalar('Accuracy/val', val_acc, epoch)
print(f"Train Loss: {train_loss:.4f}, Train Acc: {train_acc:.2%}")
print(f"Val Loss: {val_loss:.4f}, Val Acc: {val_acc:.2%}")
# 保存最佳模型
if val_acc > best_val_acc:
best_val_acc = val_acc
torch.save({
'epoch': epoch,
'model_state_dict': model.state_dict(),
'optimizer_state_dict': optimizer.state_dict(),
'val_acc': val_acc,
}, os.path.join(config.checkpoint_dir, 'best_model.pth'))
print(f"✓ 保存最佳模型 (Val Acc: {val_acc:.2%})")
# 早停检查
if early_stopping:
early_stopping(val_loss)
if early_stopping.early_stop:
print("早停触发，停止训练")
break
writer.close()
print(f"\n训练完成！最佳验证准确率: {best_val_acc:.2%}")
if __name__ == "__main__":
train()
5. 评估指标 (utils/metrics.py)¶
Python
"""
评估指标
"""
import torch
import numpy as np
from sklearn.metrics import confusion_matrix, classification_report
import matplotlib.pyplot as plt
import seaborn as sns
class AverageMeter:
"""计算并存储平均值和当前值"""
def __init__(self):
self.reset()
def reset(self):
"""重置"""
self.val = 0
self.avg = 0
self.sum = 0
self.count = 0
def update(self, val, n=1):
"""更新"""
self.val = val
self.sum += val * n
self.count += n
self.avg = self.sum / self.count
def accuracy(output, target, topk=(1,)):
"""
计算Top-k准确率
Args:
output: 模型输出
target: 目标标签
topk: top-k列表
Returns:
top-k准确率列表
"""
with torch.no_grad():
maxk = max(topk)
batch_size = target.size(0)
_, pred = output.topk(maxk, 1, True, True)
pred = pred.t()
correct = pred.eq(target.view(1, -1).expand_as(pred)) # view重塑张量形状（要求内存连续）
res = []
for k in topk:
correct_k = correct[:k].reshape(-1).float().sum(0, keepdim=True) # reshape重塑张量形状
res.append(correct_k.mul_(100.0 / batch_size).item())
return res
def plot_confusion_matrix(y_true, y_pred, classes, save_path=None):
"""
绘制混淆矩阵
Args:
y_true: 真实标签
y_pred: 预测标签
classes: 类别名称
save_path: 保存路径
"""
cm = confusion_matrix(y_true, y_pred)
plt.figure(figsize=(10, 8))
sns.heatmap(
cm, annot=True, fmt='d', cmap='Blues',
xticklabels=classes, yticklabels=classes
)
plt.xlabel('Predicted')
plt.ylabel('True')
plt.title('Confusion Matrix')
if save_path:
plt.savefig(save_path, dpi=300, bbox_inches='tight')
plt.show()
def print_classification_report(y_true, y_pred, classes):
"""
打印分类报告
Args:
y_true: 真实标签
y_pred: 预测标签
classes: 类别名称
"""
report = classification_report(y_true, y_pred, target_names=classes)
print(report)
6. Streamlit应用 (app.py)¶
Python
"""
图像分类Web应用
"""
import os
import streamlit as st
import torch
from PIL import Image
import torchvision.transforms as transforms
import torch.nn.functional as F
from config import config
from models.cnn import SimpleCNN, resnet18
# 页面配置
st.set_page_config(
page_title="图像分类系统",
page_icon="🖼️",
layout="wide"
)
# 标题
st.title("🖼️ 图像分类系统")
st.markdown("---")
# 侧边栏
st.sidebar.header("模型设置")
# 模型选择
model_type = st.sidebar.selectbox(
"选择模型",
["resnet18", "cnn"],
)
# 设备选择
device = "cuda" if torch.cuda.is_available() else "cpu"
st.sidebar.text(f"设备: {device}")
# 加载模型
@st.cache_resource
def load_model(model_type, num_classes):
"""加载模型"""
if model_type == 'resnet18':
model = resnet18(num_classes)
else:
model = SimpleCNN(num_classes)
# 加载权重
checkpoint_path = f"{config.checkpoint_dir}/best_model.pth"
if os.path.exists(checkpoint_path):
checkpoint = torch.load(checkpoint_path, map_location=device, weights_only=True)
model.load_state_dict(checkpoint['model_state_dict'])
st.sidebar.success("✓ 模型加载成功")
else:
st.sidebar.warning("⚠ 未找到模型权重")
model = model.to(device)
model.eval()
return model
# 类别名称
class_names = [
"飞机", "汽车", "鸟", "猫", "鹿",
"狗", "青蛙", "马", "船", "卡车"
]
# 加载模型
model = load_model(model_type, len(class_names))
# 图像预处理
def preprocess_image(image):
"""预处理图像"""
transform = transforms.Compose([
transforms.Resize(256),
transforms.CenterCrop(224),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]),
])
return transform(image).unsqueeze(0) # unsqueeze增加一个维度
# 主界面
col1, col2 = st.columns(2)
with col1:
st.subheader("上传图像")
# 上传图像
uploaded_file = st.file_uploader(
"选择图像",
type=['jpg', 'jpeg', 'png'],
)
if uploaded_file is not None:
# 显示图像
image = Image.open(uploaded_file).convert('RGB')
st.image(image, caption="上传的图像", use_container_width=True)
# 预测
with st.spinner("正在预测..."):
input_tensor = preprocess_image(image).to(device)
with torch.no_grad():
outputs = model(input_tensor)
probabilities = F.softmax(outputs, dim=1)[0]
confidence, predicted = torch.max(probabilities, 0)
# 显示结果
with col2:
st.subheader("预测结果")
# 显示预测类别和置信度
st.metric(
"预测类别",
class_names[predicted.item()],
f"置信度: {confidence.item():.2%}"
)
# 显示所有类别的概率
st.write("所有类别概率:")
probs_data = []
for i, (class_name, prob) in enumerate(zip(class_names, probabilities)): # zip按位置配对多个可迭代对象
probs_data.append({
"类别": class_name,
"概率": f"{prob.item():.2%}"
})
st.dataframe(
probs_data,
use_container_width=True,
hide_index=True
)
# 可视化概率分布
st.write("概率分布:")
fig, ax = plt.subplots(figsize=(10, 6))
ax.bar(class_names, probabilities.cpu().numpy())
ax.set_xlabel('类别')
ax.set_ylabel('概率')
ax.set_title('各类别预测概率')
plt.xticks(rotation=45)
st.pyplot(fig)
🧪 测试方法¶
1. 单元测试¶
Python
"""
单元测试示例
"""
import pytest
import torch
from models.cnn import SimpleCNN, resnet18
def test_cnn_forward():
"""测试CNN前向传播"""
model = SimpleCNN(num_classes=10)
x = torch.randn(2, 3, 224, 224)
output = model(x)
assert output.shape == (2, 10) # assert断言，条件为False时抛出异常
print("✓ CNN前向传播测试通过")
def test_resnet_forward():
"""测试ResNet前向传播"""
model = resnet18(num_classes=10)
x = torch.randn(2, 3, 224, 224)
output = model(x)
assert output.shape == (2, 10)
print("✓ ResNet前向传播测试通过")
2. 集成测试¶
Python
"""
集成测试示例
"""
def test_training_pipeline():
"""测试训练流程"""
from config import config
from utils.data_loader import get_data_loaders
# 加载数据
train_loader, val_loader, _ = get_data_loaders(config)
# 创建模型
model = SimpleCNN(config.num_classes)
model = model.to(config.device)
# 测试一个batch
images, labels = next(iter(train_loader))
images, labels = images.to(config.device), labels.to(config.device)
# 前向传播
outputs = model(images)
assert outputs.shape[0] == config.batch_size
assert outputs.shape[1] == config.num_classes
print("✓ 训练流程测试通过")
📊 扩展建议¶
1. 功能扩展¶
- 多标签分类: 支持一个图像多个标签
- 细粒度分类: 区分相似类别
- 零样本分类: 使用CLIP等模型
- 可解释性: 使用Grad-CAM可视化
2. 性能优化¶
- 模型压缩: 量化、剪枝
- 知识蒸馏: 训练小模型
- 混合精度训练: 使用FP16
- 分布式训练: 多GPU训练
3. 部署优化¶
- ONNX导出: 转换为ONNX格式
- TensorRT加速: 使用TensorRT推理
- 移动端部署: 部署到手机
- 边缘设备: 部署到树莓派等
📚 学习收获¶
完成本项目后，你将掌握：
- ✅ CNN架构设计和实现
- ✅ 数据增强技术
- ✅ 迁移学习方法
- ✅ 模型训练和优化
- ✅ 模型评估和分析
- ✅ Streamlit Web应用开发
- ✅ 完整的图像分类项目开发
🔗 参考资源¶
项目完成时间: 10-15小时 难度等级: ⭐⭐⭐ 中等 推荐指数: ⭐⭐⭐⭐⭐
